Bored pier inspection in Marsden Park

Depth, diameter and cage position, checked while the hole is open.

  • After boring and cage placement, before concrete
  • About 1 hour on site
  • Report within 24 hours
Get an instant quote Call 1300 471 805
Price your Marsden Park inspectionGive us the address and the stage.

Fully licensed & accredited

Stage1 of 7
When to bookAfter boring and cage placement, before concrete
Time on siteAbout 1 hour on site
Inspected againstAS 2870, AS 3600, the geotechnical report and the engineer's footing design

What is included in a Marsden Park bored piers inspection

  • Pier positions and spacing against the footing plan
  • Pier diameter checked at the top of each hole
  • Depth against the engineer's design and the soil report
  • Founding material at the base where visible
  • Reinforcement cage size, laps and starter bars
  • Cover to the cage and centralisers
  • Hole cleanliness, spoil and loose material
  • Standing water or seepage before the pour
  • Steel projection into the slab or beam
  • Termite and service penetrations near piers
  • Set-out against the site plan and boundaries
  • Records and photographs for the engineer where required
Why it matters here

Bored piers inspections on Marsden Park builds

Piers appear on Marsden Park lots where the footing must reach through fill or softer ground to bearing the engineer will accept. The depth is the entire exercise and it is the one dimension that cannot be verified once concrete is in, so the inspection sits between boring and the truck.

What we find at this stage in Marsden Park

  • Pier depth short of the engineering figure
  • Cage off centre so cover is uneven
  • Spoil or standing water left in the base
  • Cage not seated at the bottom of the bore
  • Reinforcement unsupported before the pour

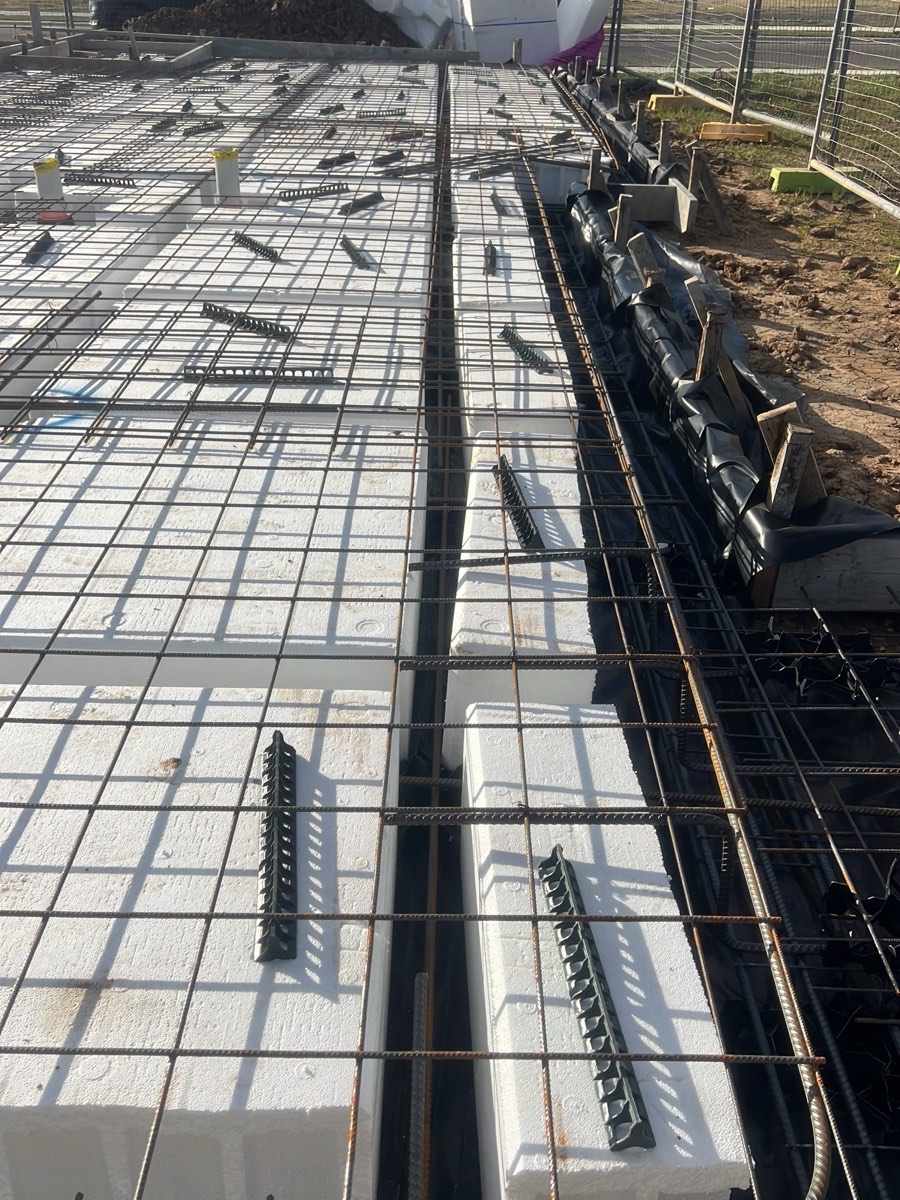

Beam width varying through the raft, Marsden Park
Beam width varying through the raft
Sample findings

Sample defects found during our bored piers inspections in Marsden Park

Annotated findings from Bored piers inspections on Marsden Park builds. Client addresses withheld.

Bars, recorded during a slab pre-pour inspection in Marsden Park
Reinforcement bars before the pour
Bars, recorded during a slab pre-pour inspection in Marsden Park
A second area of bar placement

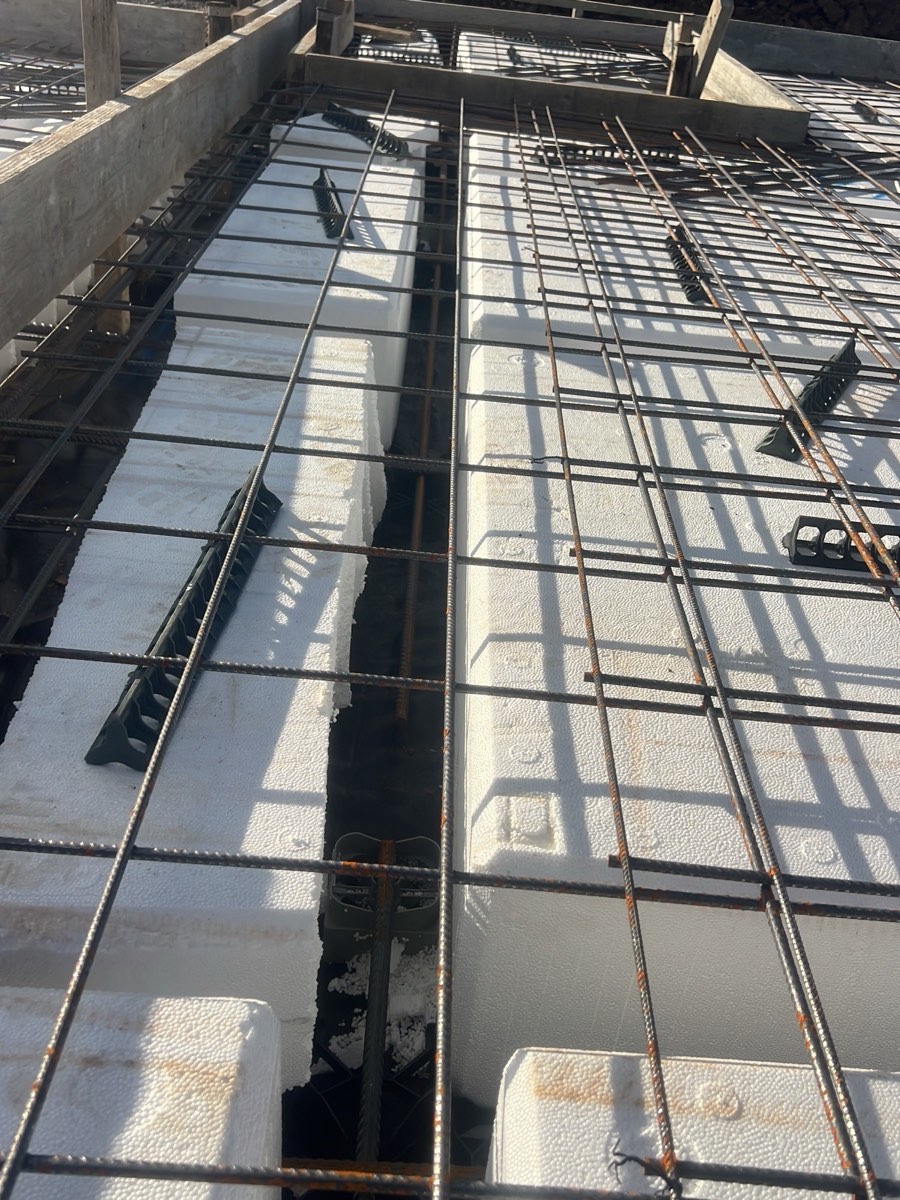

Internal rib, recorded during a slab pre-pour inspection in Marsden Park
Internal rib in the raft

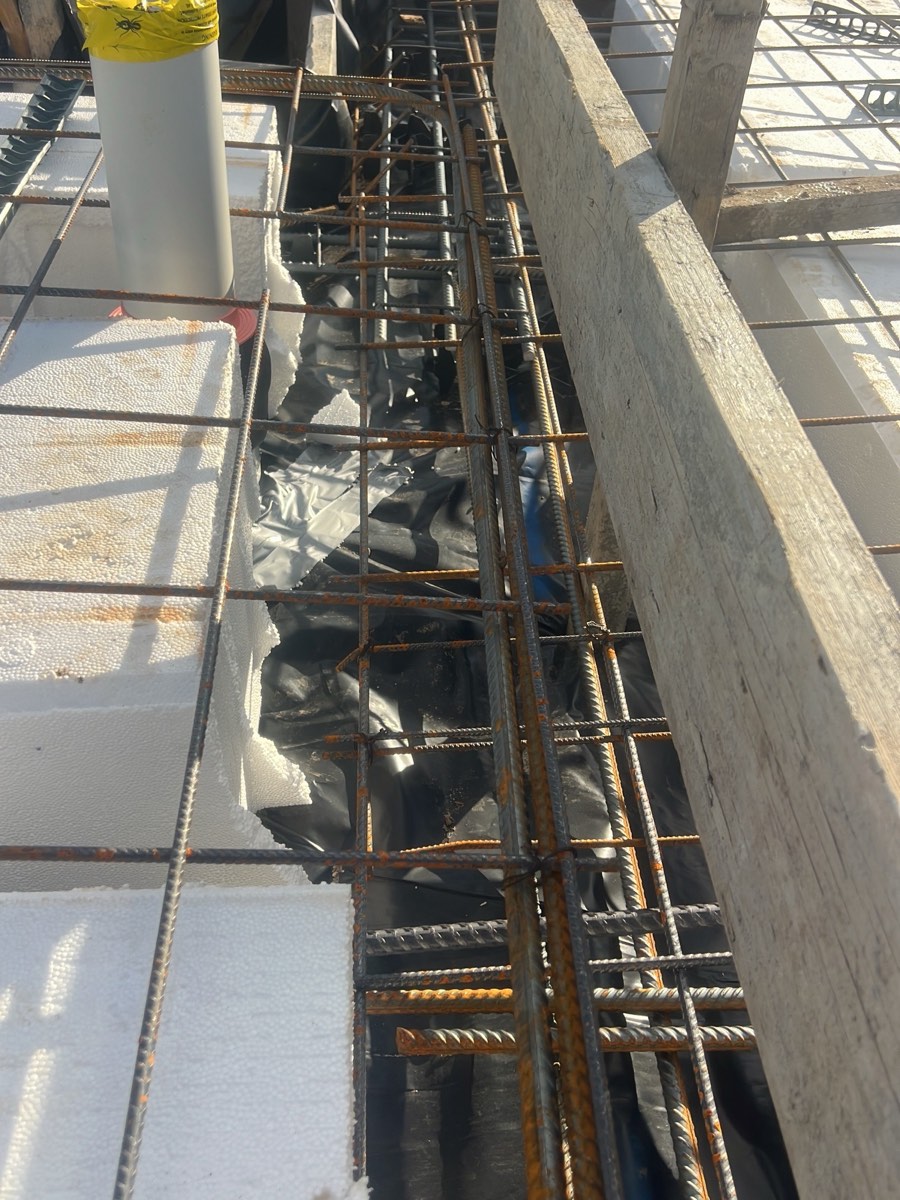

Beam reinforcement wider than 300 mm, recorded during a slab pre-pour inspection in Marsden Park
Beam reinforcement over 300 mm wide

The other stages of a Marsden Park build

  1. Slab pre-pour inspection in Marsden Park2Slab pre-pourThe day before the pour, steel and formwork complete
  2. Frame inspection in Marsden Park3FrameOnce frame and trusses are up and the roof is on, before lining
  3. Lock-up (pre-plaster) inspection in Marsden Park4Lock-up (pre-plaster)After roof, cladding and external doors, before plaster
  4. Fixing inspection in Marsden Park5FixingAfter mouldings, doors and joinery, before the painter
  5. Waterproofing inspection in Marsden Park6WaterproofingAfter the membrane is applied and before any tile is laid
  6. Pre-handover (PCI) inspection in Marsden Park7Pre-handover (PCI)Two to three weeks before your handover date

All construction stage inspections in Marsden Park →

Guides

Construction stage guides for Marsden Park

All guides →

Book a bored piers inspection in Marsden Park

Instant online pricing, or talk to the booking team on 1300 471 805.

Get an instant quoteCall 1300 471 805
FAQ

Bored piers inspections in Marsden Park: common questions

What is the on site duration?

Under an hour on an ordinary lot, more where the pier count is high.

And if the bore falls short of depth?

We put the measured figure beside the required one. Proposing the remedy is for the builder and their engineer.

Will you certify the footings?

No. Observations go against the engineering, and certifying is an engineer's role.

Is standing water an issue?

Potentially, because concrete poured into water ends up weaker at the base. Recording it means it gets pumped.

How early should I get in touch?

A day is enough. Boring and filling piers frequently happens within a two day window.

What documents should I provide?

Your lot engineering, setting out pier depths, diameters and positions.
